Replacing Front and Back PanelsUpdated 15 days ago

Tools Required:

• Screwdriver with Torx 10 (T10) tip (Use adjustable torque if electric)
• Screwdriver with 3mm flat-tip

⚠️ Ensure that re:Mix is unplugged from the socket, electric shock risk

1. Lay the re:Mix on it's back (with the knob facing top).

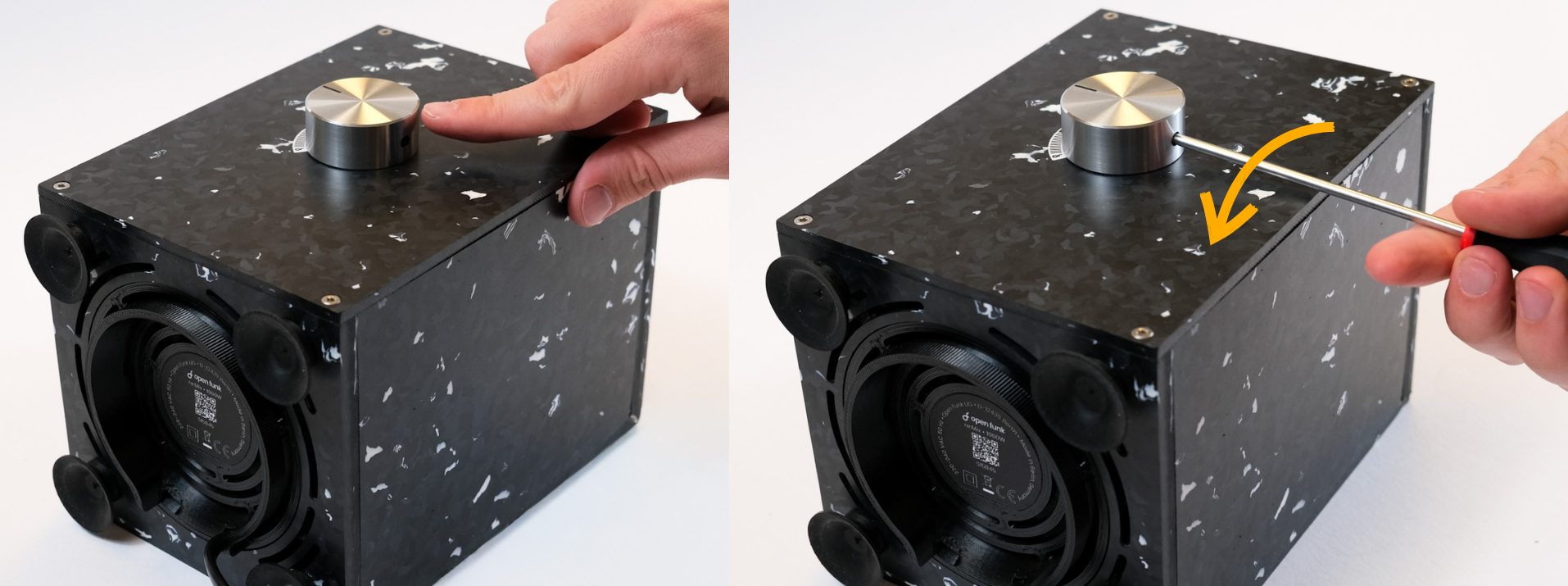

2. Spot the hole on the right of the knob and with the flat tip screw driver gently unscrew it.

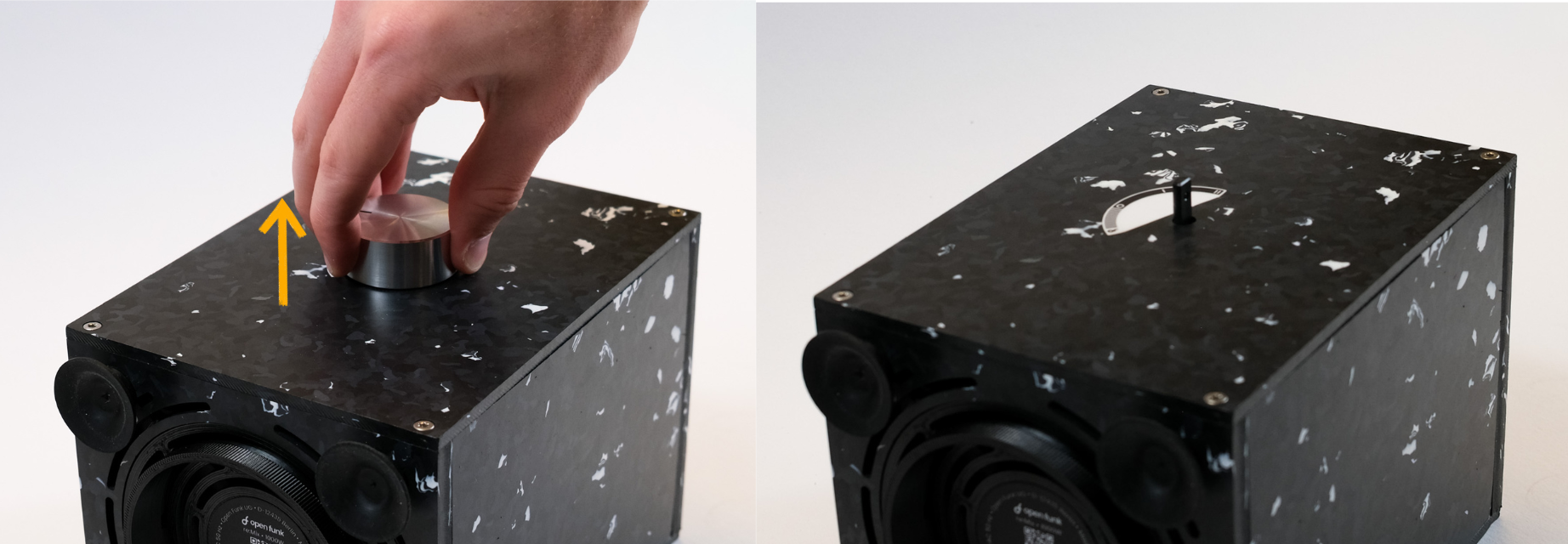

3. Once loose enough, pull the knob out to discover the tip of the rotary switch.

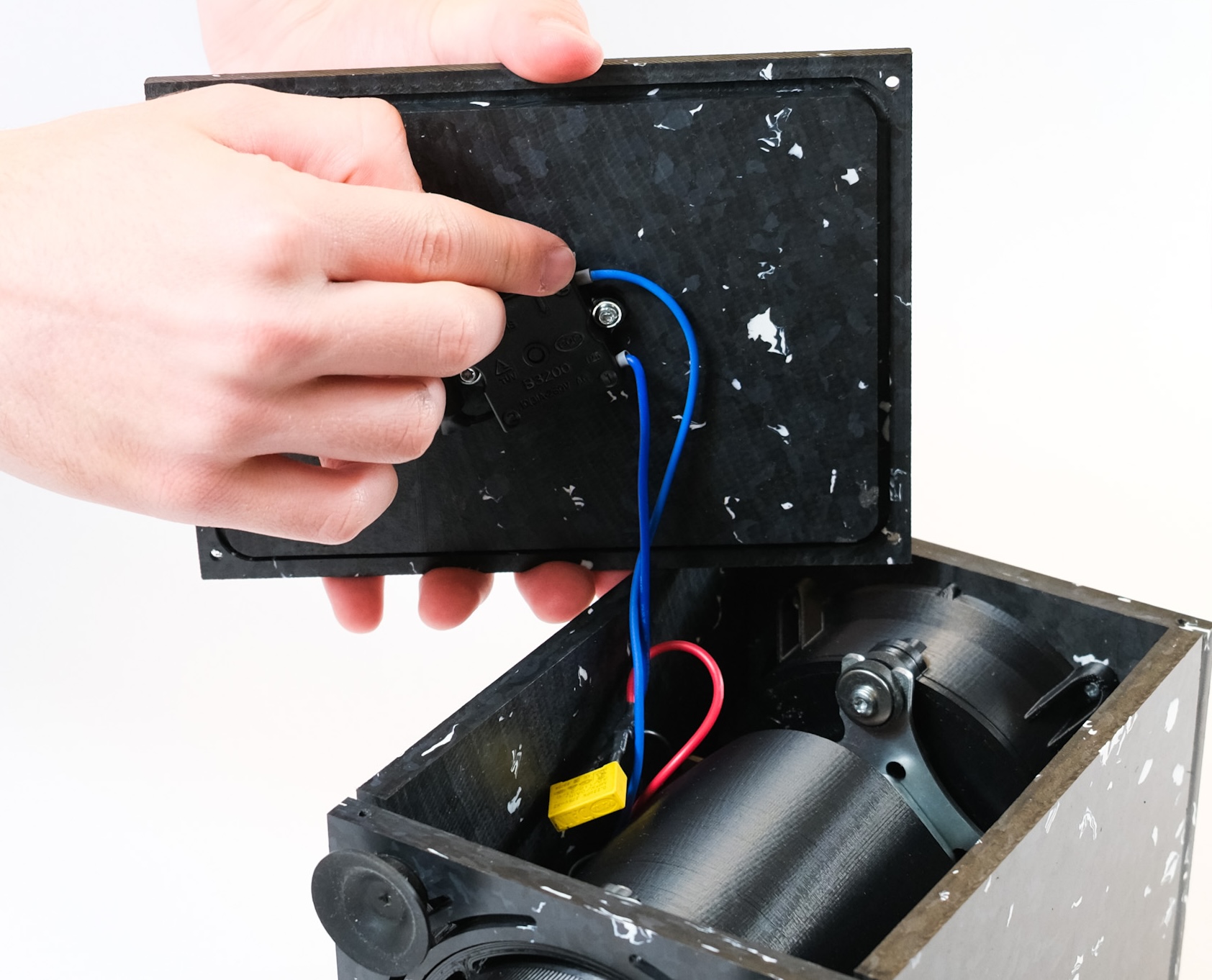

4. Unscrew the four edge screws on the front panel and gently turn it around.

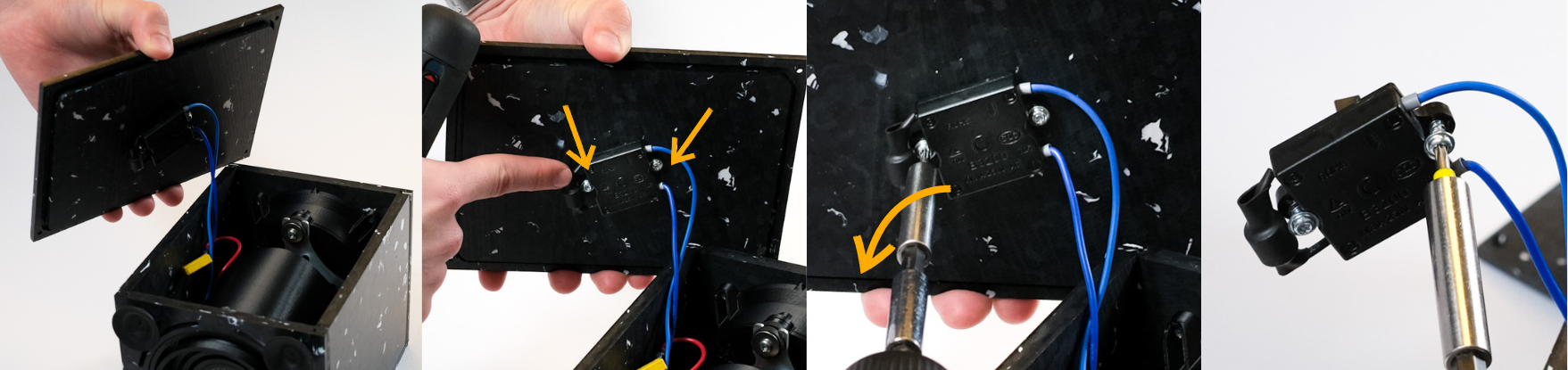

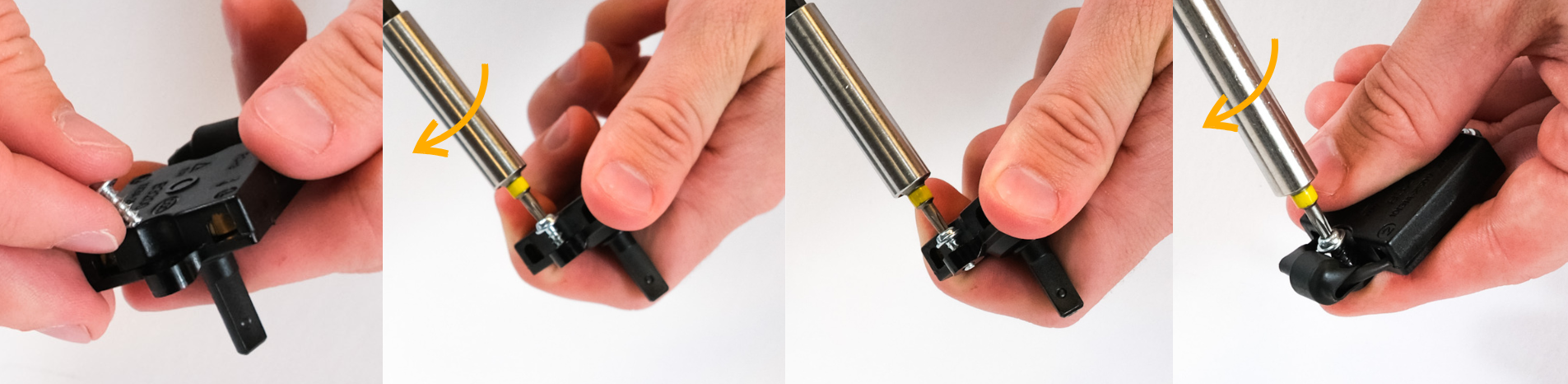

5. Behind the front panel unscrew the two screws attaching the switch to the panel

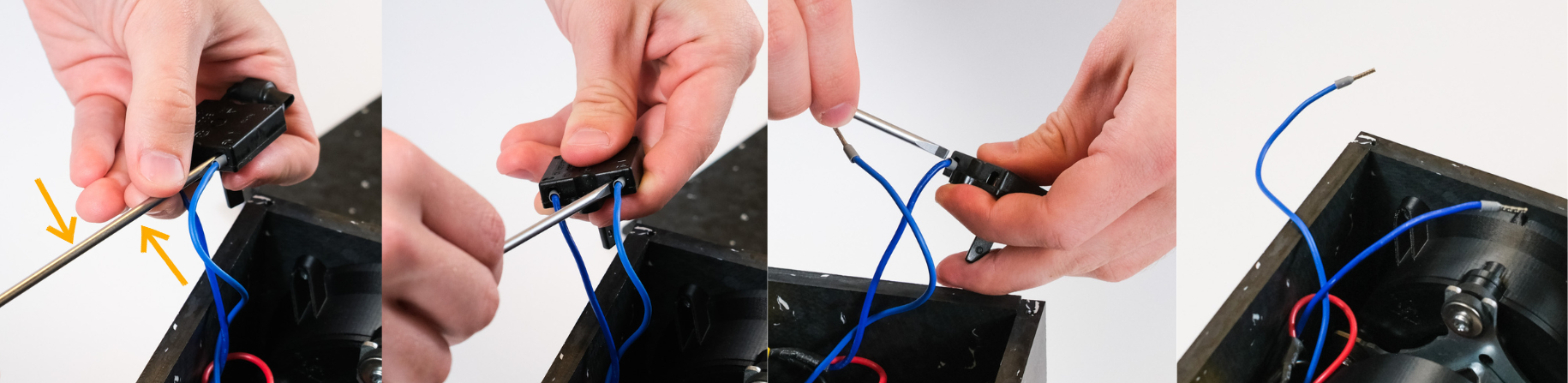

6. Pull the rotary switch out and insert the flat tip screwdriver next to the the blue wires and gently wiggle the blue wires free.

7. Screw the rotary switch screws back in.

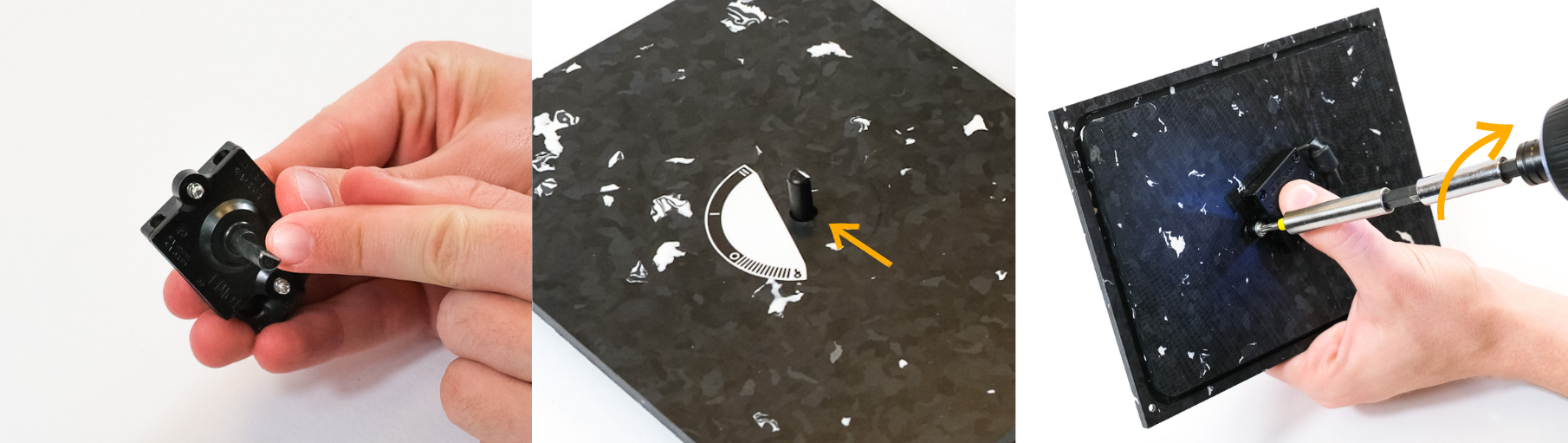

8. With the flat tip of rotary switch facing right on the new front panel, screw the switch back in.

9. Ensure that the light blue wire is attached to the left top of the rotary switch and the dark blue wire to the right top of the rotary switch.

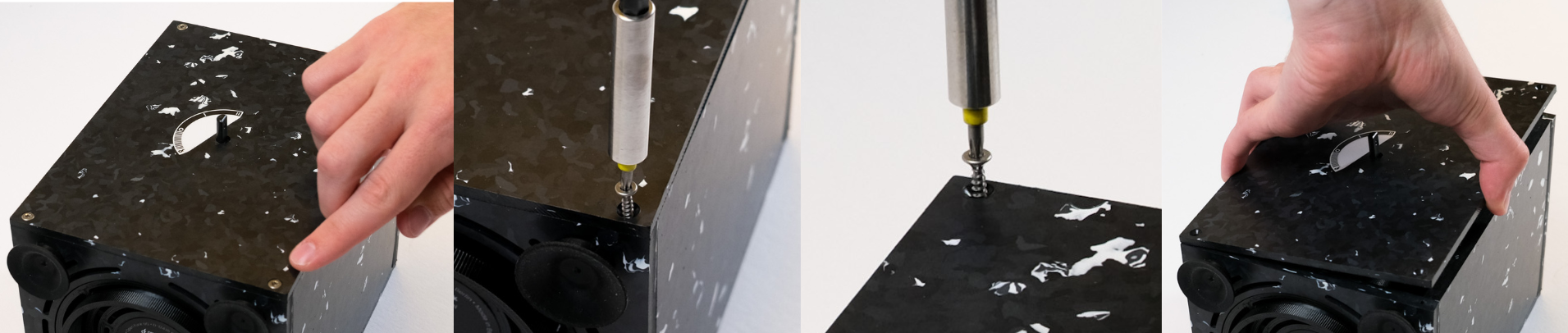

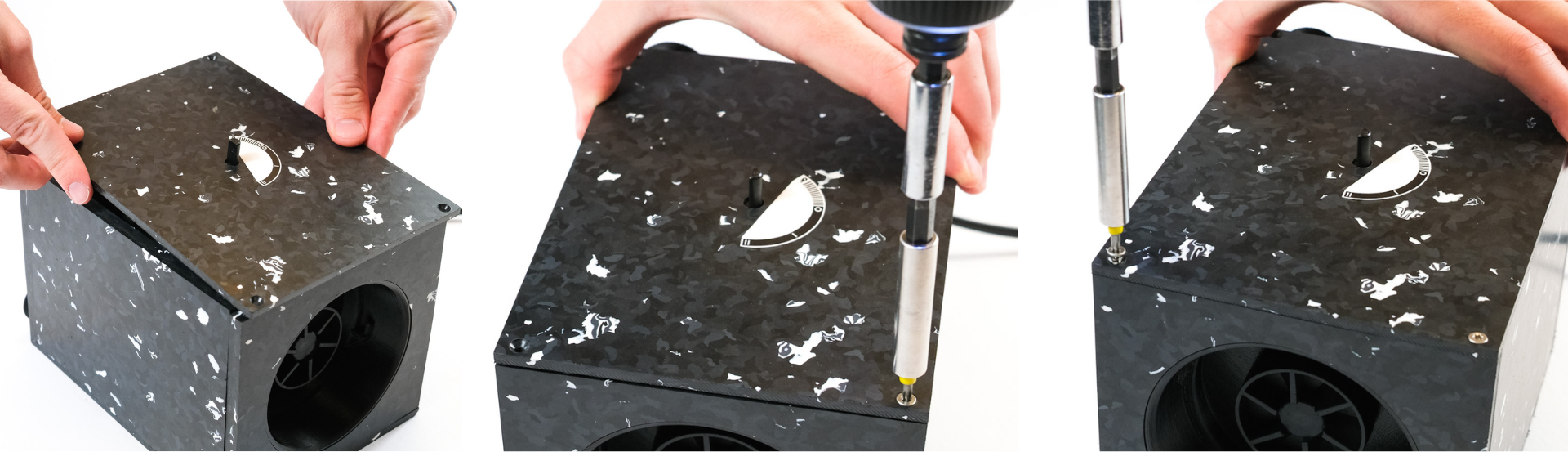

10. Place the brand new panel back on and screw the four edge screws back in.

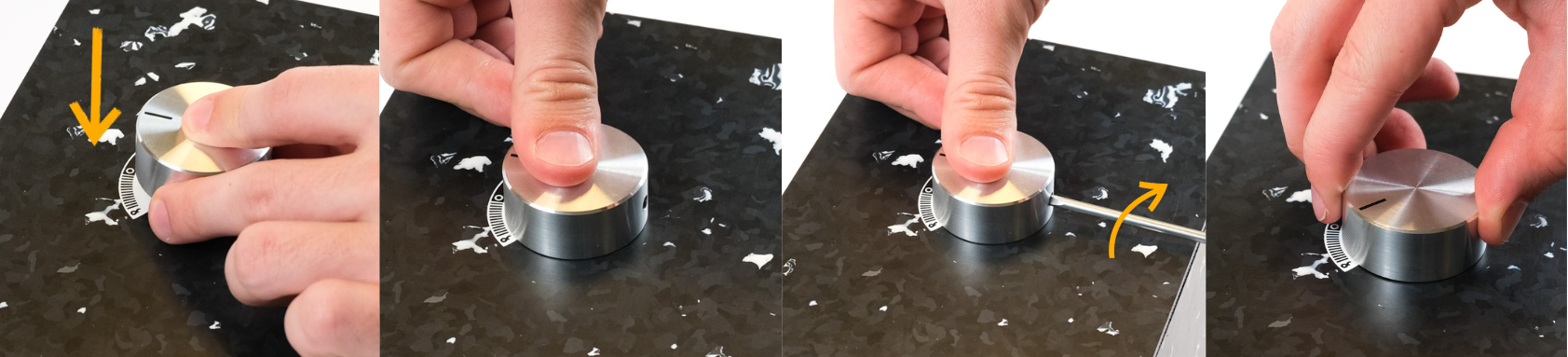

11. Place the knob with the line facing the 0 on the sticker and screw it in clockwise, turn to test.

For the back panel:

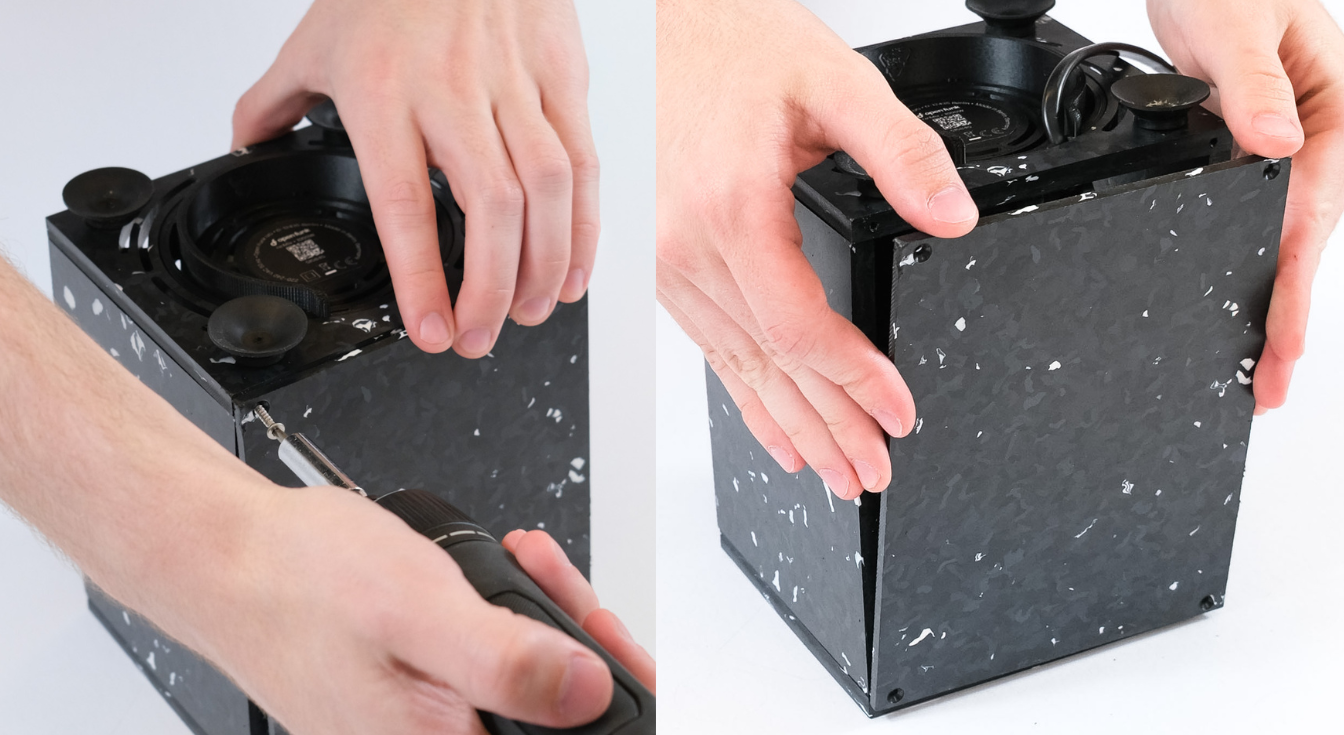

12. Simply unscrew the four edge screws and replace the new back panel and screw it back in.
